**SPARE FARYMANN ENGINE PARTS**
CONTACT QDS
(703) 631-2997 | qdsinc@att.net

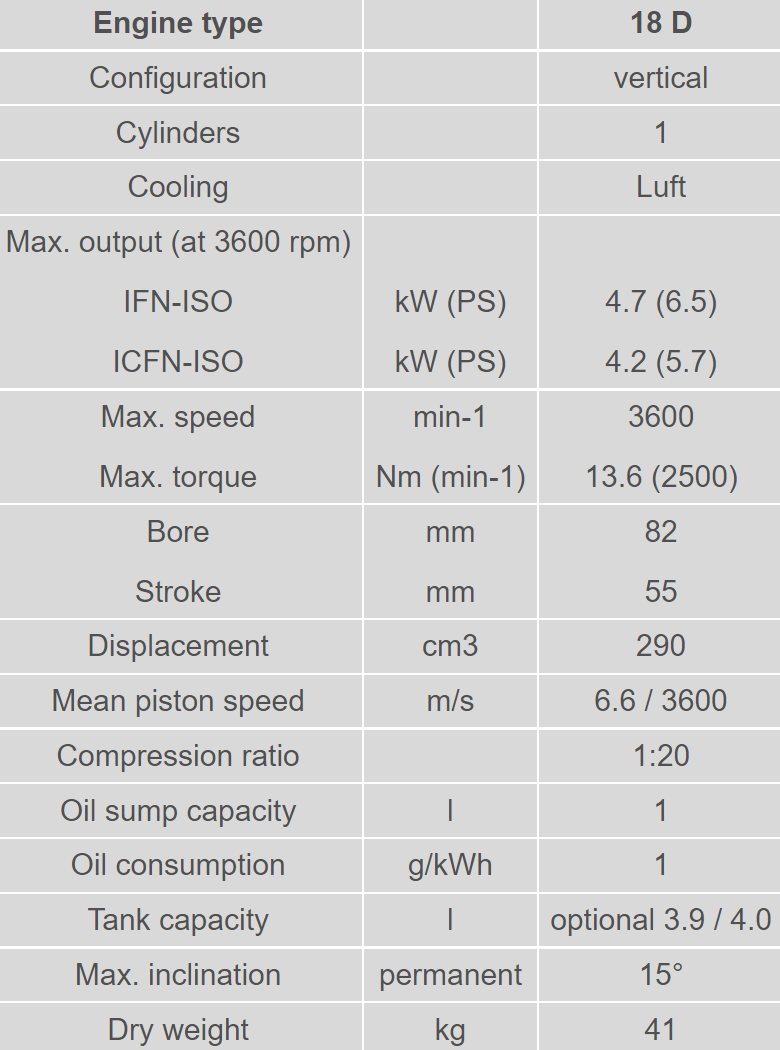

Single cylinder four stroke diesel engine, air cooled with direct injection system, save manual start with starting handle or electric starter motor, excess fuel device, automatic decompression, self-venting fuel system, mechanical governor, lubricating oil gear pump, oil filter, dry type air cleaner or oil bath air cleaner, exhaust silencer, 3.9 l fuel tank, fuel filter, crankcase of high tensile light alloy, crankshaft / con rod bearing: plain bearings on all except flywheel end (roller bearing), cast integral engine feet, power take of flywheel end, environmentally friendly by using internal crankcase breathing and valve stem seals. The engine is also available with clockwise rotation under the denomination 15 B / 18 B and in water cooled version as 15 W / 18 W.
3.9 l fuel tank, fuel filter, dry type air cleaner, oil filter, exhaust silencer, operator`s manual.
4.0 l fuel tank, oil bath air cleaner, electric starter motor, alternator, solenoid valve, oil pressure switch, fuel lift pump, anti-kickback starting handles, different flywheel housings, flanges and couplings, EPA-certificate.
Blocked power output for intermittent loads.
Standard rating for constant speed level and constant load level. For applications with continuous operation beyond the limits please contact the manufacturer.
Derating 1% approx. every 100 m altitude and 2% approx. every 5°C above 20°C. Ratings certified within tolerance of 5% after running-in and operation with muffler and standard air cleaner.

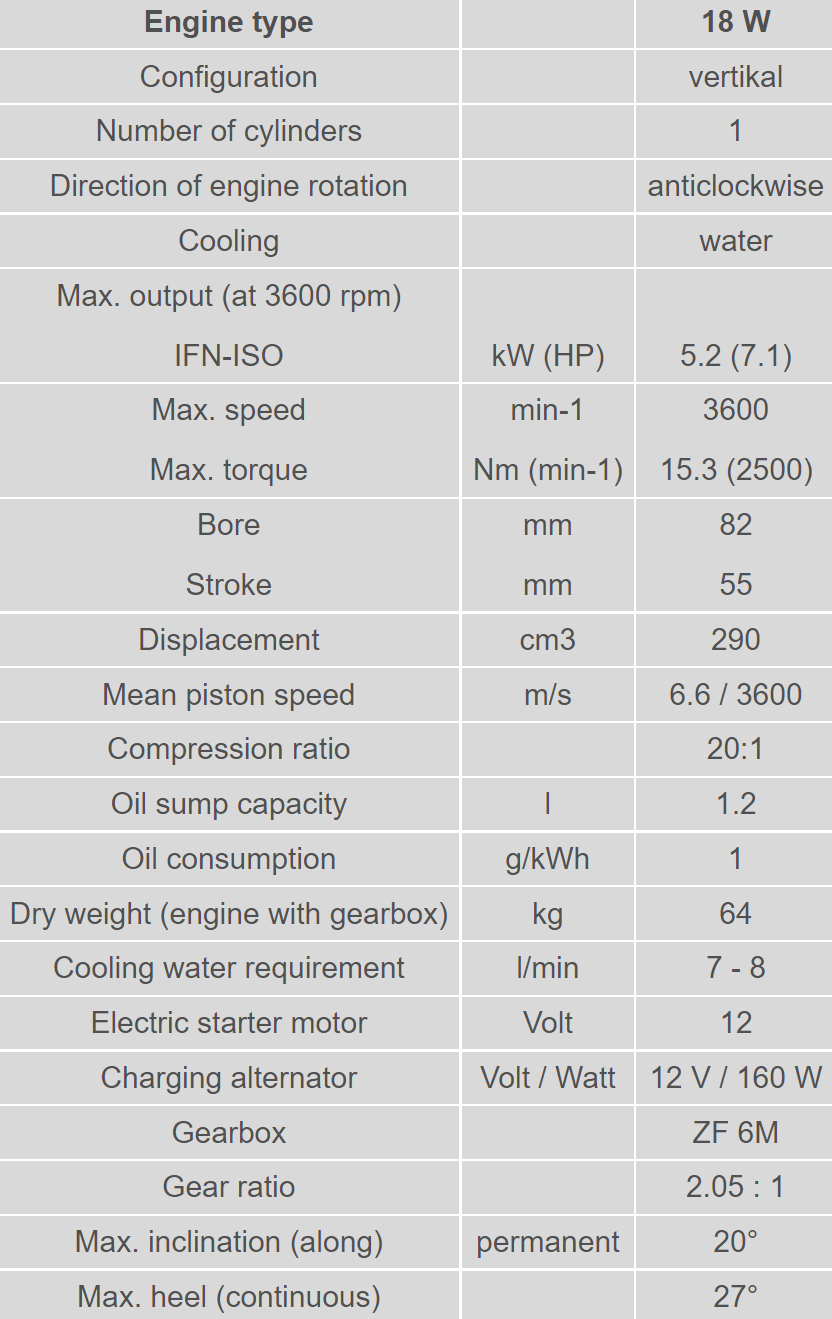

Single cylinder four stroke diesel engine, water cooled with direct injection system, save manual start with starting handle or electric starter motor, alternator in flywheel house, excess fuel device, automatic decompression, self-venting fuel system, mechanical speed governor, lubricating oil gear pump, oil filter, intake silencer or dry type air cleaner, fuel filter, water cooled exhaust elbow, cooling water pump, cooling water thermostat, crankcase of high tensile light alloy, crankshaft / con rod bearing: plain bearings on all except flywheel end (roller bearing), cast integral engine feet, power take of flywheel end, environmentally friendly by using internal crankcase breathing and valve stem seals.
Intake silencer, fuel lift pump, fuel filter, electric starter motor, alternator, solenoid valve (normally open), deep oil sump (max. inclination 20°), oil pressure switch, cooling water pump, cooling water thermostat, cooling water temperature switch, gearbox ZF 6M, base frame with flexible engine mounts, crank handle (rigid), service kit (for the first service), operator`s manuals for engine and gearbox.
Dry type air cleaner, monitoring panel, oil drain valve, oil sump drain pump.
Blocked power output for intermittent loads.
Derating 1% approx. every 100 m altitude and 2% approx. every 5°C above 20°C. Ratings certified within tolerance of 5% after running-in and operation with muffler and standard air cleaner.

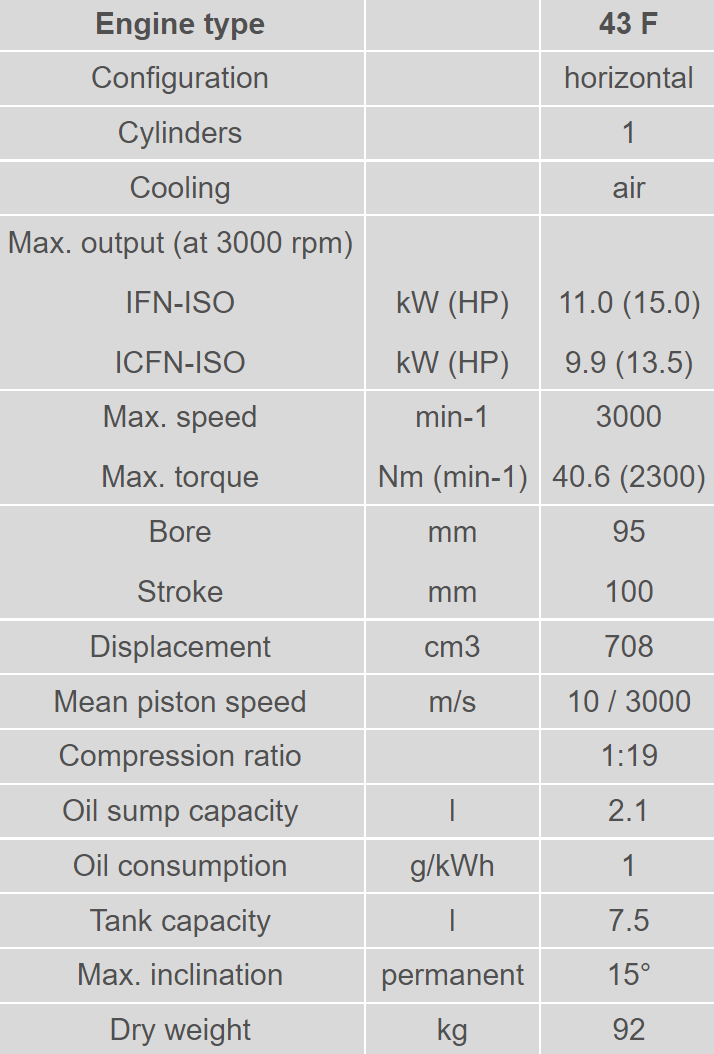

Single cylinder four stroke diesel engine, air cooled with direct injection system, save manual start with starting handle or electric starter motor, automatic excess fuel device, self-venting fuel system, mechanical governor, lubricating oil gear pump, oil filter, exhaust silencer, 7.5 l fuel tank, fuel filter, dry type air cleaner, crankcase of high tensile light alloy, crankshaft / con rod bearing: plain bearings on all except flywheel end (roller bearing), cast integral engine feet, power take of flywheel end, environmentally friendly by using internal crankcase breathing and valve stem seals, low profile due to horizontal configuration.
7.5 l fuel tank, fuel filter, dry type air cleaner, exhaust silencer, operator`s manual.
20 l fuel tank, electric starter motor, alternator, solenoid valve, oil pressure switch, engine temperature switch, fuel lift pump, anti-kickback starting handles, different flywheel housings, flanges and couplings, extended oil dip stick, deep oil pan, electronic speed control, EPA-certificate.
Blocked power output for intermittent loads.
Standard rating for constant speed level and constant load level. For applications with continuous operation beyond the limits please contact the manufacturer.
Derating 1% approx. every 100 m altitude and 2% approx.
every 5°C above 20°C. Ratings certified within tolerance of 5% after running-in and operation with muffler and standard air cleaner.
** SPARE PARTS AVAILABLE **
*ENTEC MARINE GENERATOR SPARE PARTS *
